Enhanced TDS
Identification & Functionality
- Chemical Family
- RTU Product Type
- Technologies
- Product Families
Features & Benefits
- Ready-to-Use Product Features
- Features and Benefits
- Exhibit very good UV resistances
- Resist yellowing at high temperature
- Offer relatively high crack resistance in terms of high Tg property
- Adhere to leadframe and housing firmly
Applications & Uses
- Composites Processing Methods
- Product End Uses
- System Preparation
- Pre-Mixing: Component A to be preheated at 60°C/30min
- Mixing: The mixture of component A/component B may be mixed using standard techniques.
- Degassing: Use vacuum device; 0 - 10 mmHg
- Application Information
- Applicable for blue and white LED
- Applicable for chip and high power LED
Technical Details & Test Data
- Typical Cured Information

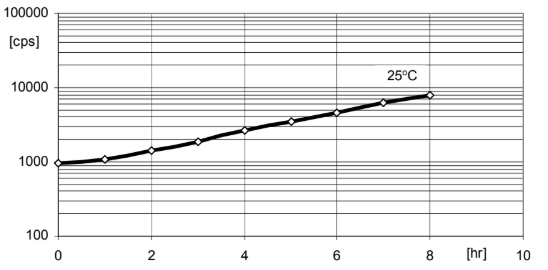

Fig 1: Viscosity increment at 25°CInitial viscosity - BH type Viscometer (20 rpm) at 25°C - 980 cps
Recommended cure schedule
-
1st Step Cure at 130°C - 1 hour
- Post Cure at 150°C - 5 hours
Note: Actual oven cure is dependent upon applications and substrate/component design.
Specimen cured at 130°C for 1 hr and 150°C for 5 hr
Property Test Method Test Values Unit At Condition Glass Transition Temperature (Tg) 138 °C DSC - Coefficient of Thermal Expansion 54 ppm - Below Tg Coefficient of Thermal Expansion 176 ppm - Above Tg Hardness 88 Shore D ASTM D-2240 - Flexural Strength 14.46 kg/mm² ASTM D-790 25°C Flexural Modulus 281 kg/mm² ASTM D-790 25°C Shrinkage 1.03 % - - Water Pick-Up 1.53 % ASTM D570 - Water Pick-Up, Boiling at 100°C for 24 hours 5.08 % - 100°C, 24 hours Volume Resistivity 1.43 x 10¹⁶ Ω·cm ASTM D257 - Dielectric Constant 3.1 - ASTM D150 1 MHz Dielectric Loss 1.93 % ASTM D150 1 MHz Transmittance and Yellow Index (2mm Thickness)
- - Yellow Index 1.46 - - 2mm thickness Transmittance (400nm) 83.18 % - 2mm thickness Transmittance (500nm) 86 % - 2mm thickness Transmittance (600nm) 86.71 % - 2mm thickness Transmittance (700nm) 87.56 % - 2mm thickness Transmittance and Yellow Index (UV Resistance, 365nm, 30mW/cm² for 400 hours)
Yellow Index 6.79 - - 365nm, 400 hrs Transmittance (400nm) 64.13 % - 365nm,30mW/cm² for 400 hours
Transmittance (500nm) 84.44 % - 365nm,30mW/cm² for 400 hours
Transmittance (600nm) 85.61 % - 365nm,30mW/cm² for 400 hours
Transmittance (700nm) 87.84 % - 365nm,30mW/cm² for 400 hours
Transmittance and Yellow Index (Heat Resistance at 260°C for 10 minutes)
Yellow Index 3.93 - - 260°C, 10 min Transmittance (400nm) 76.74 % - 260°C, 10 min Transmittance (500nm) 85.68 % - 260°C, 10 min Transmittance (600nm) 87.11 % - 260°C, 10 min Transmittance (700nm) 87.99 % - 260°C, 10 min -
Safety & Health
- Industrial Hygiene
Mandatory and recommended industrial hygiene procedures should be followed whenever our products are being handled and processed.
Storage & Handling
- Storage Conditions
The components have to be stored under dry conditions below 25°C, in tightly sealed original containers. Under these conditions, the shelf life will correspond to the expiry date stated on the label. After this date, the product may be processed only following reanalysis. Partly emptied containers should be closed tightly immediately after use.
