Enhanced TDS
Identification & Functionality
- Blend
- No
- Chemical Family
- Function
- Resin
- Plastics & Elastomers Functions
- Single Ingredient
- Yes
- Technologies
- Product Families

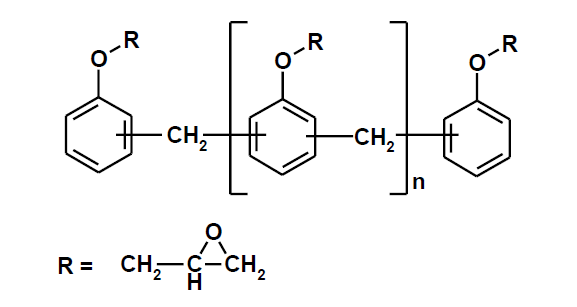

- Chemical Structure
Features & Benefits
- Materials Features
- Advantages
- Higher cross-linking
- Better dimensional stability
- Higher Tg
- Better chemical resistance
Applications & Uses
- Application Information
Upgrading of epoxy resins for electrical grade laminates to meet the requirements of:
• IEC 249-2
• MIL-P-13949 F, Type GF
• NEMA FR-4
Properties
- Physical Form
Regulatory & Compliance
Safety & Health
- Handling and Safety Information
Mandatory and recommended industrial hygiene procedures should be followed whenever our products are being handled and processed
Packaging & Availability
- Regional Availability
Storage & Handling
- Storage and Handling Information
ARALDITE® EPN 1138 should be stored in a dry place, preferably in the sealed original container, at temperatures between 2 and 40 °C. The product should not be stored exposed to direct sunlight.
Other
- Appearance
- Clear, high viscous resin
- Color (SDS)
- Light Yellow
- Odor (SDS)
- Slight
- Physical Properties
Value Units Test Method / Conditions Density 1.22 g/cm³ g/cm³ at 25 °C Viscosity 20000.0-50000.0 mPa.s mPa.s Hoppler Viscometer at 52°C Viscosity 20000.0-50000.0 mPa.s mPa.s ISO 12058-1 at 52°C
