ARALDITE® EPN 1139

ARALDITE® EPN 1139 is a semi-solid multifunctional epoxy phenol novolac resin characterized by superior chemical resistance and excellent heat stability. It is ideally suited for manufacturing pre-impregnated materials used in structural applications, as well as in electrical and electronics industries.

Chemical Family: Phenol & Cresol Epoxy Resins (Novolac)

End Uses: Encapsulant, Laminates

Processing Methods: Casting, Filament Winding, Pultrusion

Features: Chemical Resistance, High Glass Transition Temperature, Solvent Resistance, Thermal Resistance

  • TypeDocument Name
View All Documents

Enhanced TDS

Identification & Functionality

Blend
No
CASE Ingredients Functions
Chemical Family
Function
Resin,Binder & Resin
Plastics & Elastomers Functions
Single Ingredient
Yes
Technologies
Product Families

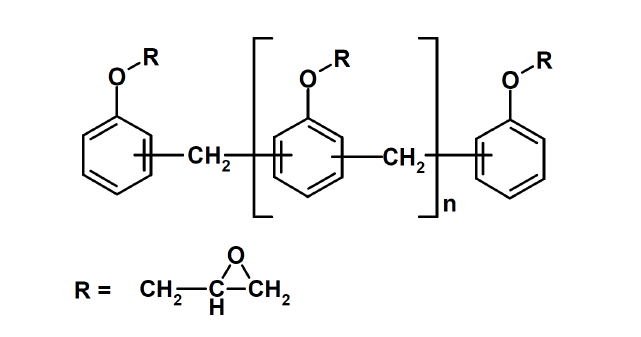

Chemical Structure

 - 1

Features & Benefits

CASE Ingredients Features
Materials Features
Features and Benefits
  • Higher cross-linking
  • Better dimensional stability
  • Higher Tg
  • Better chemical resistance

Applications & Uses

Plastics & Elastomers End Uses
Plastics & Elastomers Processing Methods
Markets
Applications
Application Information
  • Upgrader of epoxy formulations for structural composites, adhesives, electronics, coatings, etc.
  • Structural and electrical laminates
  • Coatings
  • Castings
  • Encapsulations for elevated service

Properties

Physical Form
Processing

Curing agents that give the optimum in elevated temperature properties for epoxy novolacs are those with good high temperature performance such as aromatic amines, catalytic curing agents, phenolics and some anhydrides. When cured with polyamide or aliphatic polyamines and their adducts, epoxy novolac resins show improvement over bisphenol A-based epoxies, but the critical performance of each cure is limited by the performance of the curing agent.

Regulatory & Compliance

Packaging & Availability

Regional Availability
  • Americas
  • Asia Pacific

Storage & Handling

Storage and Handling Information

ARALDITE® EPN 1139 Resin is supplied in 525-pound steel drums. The product should be stored in a dry place, in the sealed original containers, at temperatures between 2°C and 40°C. Under these storage conditions the shelf life is 2 years (from date of manufacture). The product should not be exposed to direct sunlight.

Other

Appearance
Clear pale yellow
Color (SDS)
Light Yellow
Odor (SDS)
Slight
Chemical Properties
ValueUnitsTest Method / Conditions
Epoxy Equivalent Weight172.0-179.0 g/eqg/eq
Functionality2.8-
Physical Properties
ValueUnitsTest Method / Conditions
Density1.22 g/cm³g/cm³At 25°C
Flash Point218.0 °C°CClosed Cup
Viscosity1100.0-1700.0 cPscPsat 52°C
