ARALDITE® EPN 1180 X 80

ARALDITE® EPN 1180 X 80 is a semisolid, polyfunctional phenol novolak glycidyl ether and its solutions.

Chemical Family: Novolac Phenolic

End Uses: Pipe Coating

Features: Acid Resistance, Alkali Resistance, Chemical Resistance, High Crosslinking, High Reactivity, Hot Water Resistance, Solvent Resistance

  • TypeDocument Name
View All Documents

Enhanced TDS

Identification & Functionality

Blend
No
CASE Ingredients Functions
Chemical Family
Chemical Name
Function
Binder & Resin,Resin
Single Ingredient
Yes
Synonyms
Phenol-Formaldehyde Polymer Glycidyl Ether, Phenol-Formaldehyde Polymer Oxiranylmethyl Ether
Technologies
Product Families

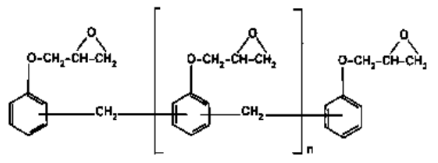

Theoretical Formula

 - 1

Features & Benefits

CASE Ingredients Features
Features and Benefits

ARALDITE EPN 1180 is a polyfunctional resin characterized after curing by a high crosslinking density. Formulations based on ARALDITE EPN 1180 or its solutions exhibit high reactivity. Cure at ambient temperature gives adequate film properties, but post-cure at 40 to 60 °C increases cross-linking and consequently improves resistance to chemicals and temperature. Post-cured coatings show: very good resistance to inorganic and organic acids outstanding resistance to alkalis and to organic solvents good resistance to hot water. ARALDITE EPN 1180 and its solutions are suitable for the production of coatings coming into contact with foodstuffs.

Applications & Uses

Coating End Applications
Compatible Polymers & Resins
Application Details

Alone or in combination with liquid or solid bisphenol-A epoxy resins, ARALDITE EPN 1180 (former designation: ARALDITE GY 1180) and its solutions can be used for the production of low-solvent coatings showing very high resistance to chemicals and solvents. Suitable ARADUR® are particularly aliphatic polyamines and their adducts.

Properties

Physical Form

Regulatory & Compliance

Technical Details & Test Data

Compatibility and Dilution

ARALDITE EPN 1180 and its solutions are fully compatible with modified and unmodified epoxy resins based on bisphenol-A as well as with aliphatic and aromatic reactive diluents. They are likewise miscible with most commercially available polyamines and their adducts. Compatibility with polyamidoamines such as the ARADUR® 815-2, 825-2, 840-2 is limited

Packaging & Availability

Regional Availability
  • Americas
  • Asia Pacific
  • Australia
  • EIMEA

Storage & Handling

Storage Information

ARALDITE EPN 1180 and its solutions should be stored in a dry place, preferably in the sealed original containers, at temperatures between 2 and 40 °C. The products should not be stored exposed to direct sunlight. Shelf life (at storage temperature between 2 - 40 °C) (see expiry date on original container) several years

Other

Appearance
Clear
Color (SDS)
Light yellow
Insoluble in (SDS)
Water
Odor
Has odor
Physical Properties
ValueUnitsTest Method / Conditions
Density1.13 g/cm³g/cm³ISO 1675 at 25°C
Flash Point28.0 °C°CISO 2592
Viscosity1200.0-2000.0 mPa.smPa.sFalling Ball Viscometer at 25°C
Viscosity1200.0-2000.0 mPa.smPa.sISO 12058 at 25°C
