ARALDITE® GY 289

ARALDITE® GY 289 is a low-viscosity epoxy phenol novolac resin recommended for solvent-free and high-solids coatings. With an average functionality greater than two, it is a multifunctional epoxy resin that provides high crosslink density when properly cured with a variety of hardeners. As a result, coatings based on ARALDITE® GY 289 exhibit excellent chemical and thermal resistance, surpassing those of conventional epoxy resins. Compared to the well-known epoxy phenol novolac resin Araldite® EPN 1179, ARALDITE® GY 289 offers much lower viscosity, making it easier to handle and enabling formulations of solvent-free performance epoxy novolac coatings. It is also compatible in all proportions with liquid bisphenol A and bisphenol F epoxy resins, expanding possibilities for formulating solventless and high-solids coatings.

Chemical Family: Phenol & Cresol Epoxy Resins (Novolac)

End Uses: Solventless & High Solids Coating

Features: Chemical Resistance, High Glass Transition Temperature, High Temperature Resistance, Low Viscosity, Solvent Resistance, Thermal Resistance

  • TypeDocument Name
View All Documents

Enhanced TDS

Identification & Functionality

Blend
No
CASE Ingredients Functions
Chemical Family
Function
Binder & Resin,Binder & Resin
Single Ingredient
Yes
Technologies
Product Families

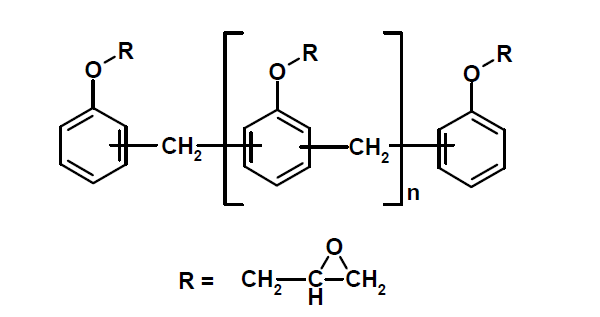

Chemical Structure

 - 1

Features & Benefits

CASE Ingredients Features
Labeling Claims
Key Properties
  • Lower viscosity as compared to other EPN resins
  • Higher functionality than bisphenol A epoxy resins
  • Excellent chemical resistance
  • Good solvent resistance
  • Good mechanical properties
  • Excellent heat resistance
  • FDA included in Section 175.300 of Title of the U.S. Code of Federal Regulations for polymeric coatings

Applications & Uses

Coating End Applications
Compatible Polymers & Resins

Properties

Physical Form

Regulatory & Compliance

Packaging & Availability

Regional Availability
  • Americas
  • Asia Pacific
  • EIMEA

Storage & Handling

Storage and Handling Information

Araldite GY 289 epoxy phenol novolac resin should be stored at room temperature in the original sealed container. The expiry date is indicated on the label.

Other

Appearance
Clear
Color (SDS)
Light Yellow Clear
Odor (SDS)
Slight
Chemical Properties
ValueUnitsTest Method / Conditions
Epoxy Equivalent Weight167.0-175.0 g/eqg/eq
Functionality2.8-
Physical Properties
ValueUnitsTest Method / Conditions
Density1.19 g/cm³g/cm³At 25°C
Flash Pointmin. 200.0 °C°CClosed Cup
Viscosity7000.0-11000.0 cPscPsAt 25°C
