HYPRO® 1300X63 ETBN

HYPRO® 1300X63 ETBN is a reactive toughener and flexibilizer.

Functions: Flexibilizer, Thermocycling Modifier, Toughener, Toughener

Chemical Family: Epoxy & Epoxy Derivatives

End Uses: Impact Resistant Coating, Industrial Adhesives, Pre-pregs, Structural Adhesive

Features: Excellent Adhesion, Good Processing Stability, Good Toughness, High Impact Resistance, Impact Peeling Resistance, Improved Flexibility, Thermal Resistance

  • TypeDocument Name
View All Documents

Enhanced TDS

Identification & Functionality

CASE Ingredients Functions
Chemical Family
Composite Materials Functions
Function
Flexibilizer
Technologies
Product Families
Chemical Structure

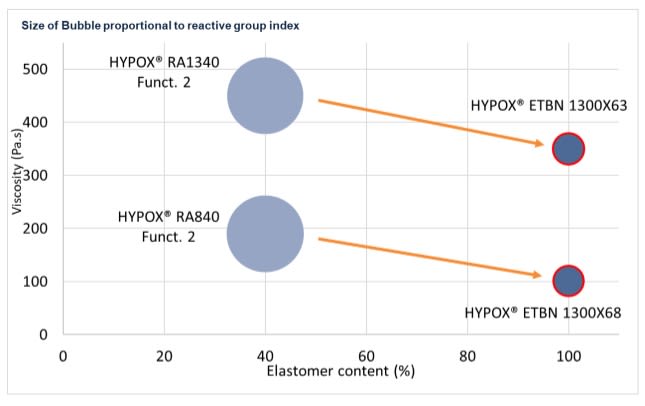

HYPRO® 1300X63 ETBN - Technical Graph - 1

Features & Benefits

CASE Ingredients Features
Product Properties
  • Reactive Liquid Polymers (RLP) are 100% solids liquid rubbers used to improve the toughness, flexibility, adhesion and impact resistance of thermoset resin systems including epoxies, vinyl esters, unsaturated polyesters, acrylics. The elastomer improves the toughness and impact, thermal shock and peel resistance of the epoxy formulation. These improvements are attained with little loss of thermal resistance and modulus. HYPRO® 1300X63 ETBN is compatible with all standard bis-A epoxy resins and curing agents.

Applications & Uses

Adhesive & Sealant End Applications
Coating End Applications
Composites End Use
Product Applications

HYPRO® 1300X63 ETBN is suggested for use as a toughener in fiber-reinforced products, adhesives, molding compounds, potting and encapsulating compounds and chemical-resistant coatings. HYPRO® 1300X63 ETBN can be blended with other components to achieve the degree of toughening required.

  • Molding compounds
  • industrial Adhesives
  • Impact resistance coatings
  • Thermocycling modifier for epoxies
  • Toughening of prepregs, and composites and structural adhesives

Properties

Physical Form

Regulatory & Compliance

Technical Details & Test Data

Technical Graph

HYPRO® 1300X63 ETBN - Storage Condition - 1

Safety & Health

Handling Precautions

HYPRO® 1300X63 ETBN is not a primary skin irritant or sensitizer. However, as with any epoxy material, irritation can result from repeated or prolonged contact. The symptoms of this irritation may appear as a mild reddening or a more pronounced rash. It is, therefore, important to avoid skin contact where possible. Butyl rubber gloves, full eye protection and protective clothing are recommended.

  • Skin contact: Wash well with soap and water. Remove contaminated clothing and wash thoroughly before reusing. It is recommended that resin not be removed from skin with solvents since solvents increase contact and encourage penetration. Moreover, solvents of themselves dry and crack the skin.
  • Eye contact: Flush immediately with large quantities of water. Contact a physician.

Packaging & Availability

Regional Availability
  • Americas
  • EIMEA

Storage & Handling

Storage Condition
  • HYPRO® 1300X63 ETBN should be stored in a dry place, preferably in the sealed original container, at temperatures between 2 and 40°C. The product should not be stored exposed to direct sunlight. Keep away from food, drink and animal feeding stuff.

Other

Appearance
Clear, slightly hazy
Color (SDS)
Light Yellow
Odor (SDS)
Slight
Physical Properties
ValueUnitsTest Method / Conditions
Flash Pointmin. 200.0 °C°CPensky-Martens Closed Cup (PMCC)
Flash Pointmin. 200.0 °C°CDIN 51758
Viscosity10000.0-50000.0 mPa.smPa.sFalling Ball Viscometer at 52°C
Viscosity10000.0-50000.0 mPa.smPa.sISO 12058-1 at 52°C
