ARALDITE® CY 5980 / HARDENER HY 5980 / FLEXIBILIZER DY 040 / ACCELERATOR DY 061 / Filler Silica flour

• Good mechanical and electrical end properties.
• Very high thermal endurance properties.
• Class H according to IEC 60085.

The effective pot-life of the mix is about 1 day at temperatures below 25°C. Conventional batch mixers should be cleaned once a week or at the end of work. For longer interruptions of work, the pipes of the mixing and metering installations have to be cooled and cleaned with the resin component to prevent sedimentation and/or undesired viscosity increase. Interruptions over a week-end (approx. 48h) without cleaning are possible if the pipes are cooled at temperatures below 18°C. In case to use mixtures with high reactivity, we recommend to clean daily with the flexibiliser DY 040. Viscosity increase and gel time at various temperatures, refer Page 4.

Mold temperature
Conventional vacuum casting 60 - 100°C

Demolding times (depending on mold temperature and casting volume)
Conventional vacuum casting 4 - 8 h

Cure conditions (minimal postcure)
Conventional Vacuum Casting 6h at 80°C + 10h at 130°C or 6h at 80°C + 6h at 140°C

Castings with big volume (exothermic reaction, internal mechanical stresses) or encapsulations of heat sensitive active parts could be cured at appr. 80°C. To determine whether crosslinking has been carried to completion and the final proper- ties are optimal, it is necessary to carry out relevant measurements on the actual object or to measure the glass transition temperature. Different gelling and cure cycles in the manufacturing process could lead to a different crosslinking and glass transition temperature respectively.

Processing Viscosities

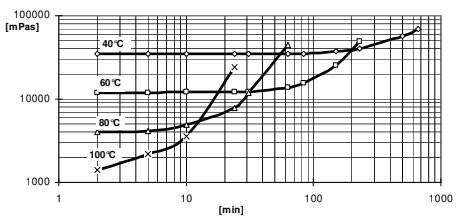

Fig4.1: Viscosity increase at 40, 60 and 80°C with DY 061, (1 pbw) (measurements with Rheomat 115) (Shear rate D = 10 s ⁻¹)

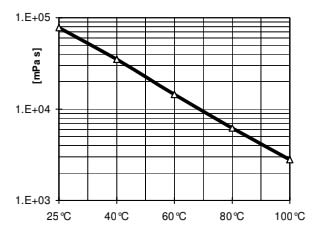

Fig.4.2 Initial viscosity as a function of temperature with DY 061, (1 pbw) (measurements with Rheomat 115 A MS DIN 125, D =10 s⁻¹)

Fig.4.3 Viscosity increase at 60 and 80°C with DY 062, (0.2 pbw) (measurements with Rheomat 115) (Shear rate D = 10 s⁻¹)

Gelation-/Cure Times

Fig.4.4 Geltime measured in function of temperature with DY 061, (1 pbw) (measurements with Gelnorm Instrument / ISO 9396)

Fig.4.5 Geltime measured in function of temperature with DY 062, (0.2 pbw) (measurements with Gelnorm Instrument / ISO 9396)

Mechanical and Physical Properties

Electrical Properties

Fig.6.1: Loss factor (tan δ) and dielectric constant (εr) as a function of temperature (measurement frequency: 50 Hz / IEC 60250)

Fig.6.2: Volume resistivity (ρ) as a function of temperature (measurement voltage: 1000 V / IEC 60093)

Thermal Endurance

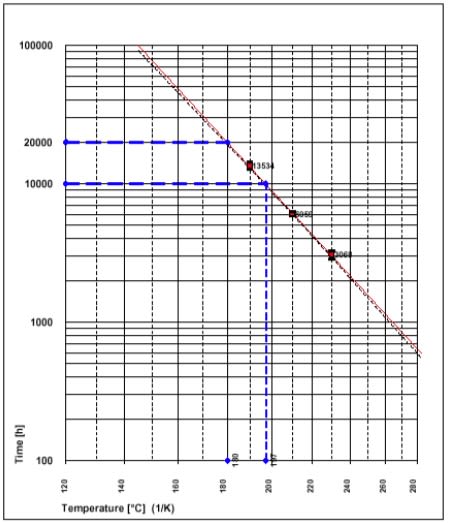

Fig. 7.1 With the high temperature index given above the materials qualify for use in systems with a thermal class of 180 C. This makes it suitable for designing and producing of class H cast resin distribution transformers.

Dry-type distribution transformers.

General instructions for preparing liquid resin systems.

• Long pot life is desirable in the processing of any casting resin system. Mix all of the components together very thoroughly at room temperature or slightly above and under vacuum. Intensive wetting of the filler is extremely important. Proper mixing will result in:

1. Better flow properties and reduced tendency to shrinkage
2. Lower internal stresses and therefore improved mechanical properties on object
3. Improved partial discharge behaviour in high voltage applications.

• For the mixing of medium to high viscous casting resin systems and for mixing at lower temperatures, we recommend special thin film degassing mixers that may produce additional self-heating of 10-15 K as a result of friction. For low viscous casting resin systems, conventional anchor mixers are usually sufficient.
• In larger plants, two pre-mixers are used to mix the individual components with the respective quantities of fillers and additives under vacuum. Metering pumps then feed these premixes to the final mixer or a continuous mixer. The individual premixes can be stored at elevated temperature (about 60°C) for up to about 1 week, de-pending on formulation. Intermittent agitation during storage is advisable to prevent filler sedimentation.
• Note: A premix of accelerator with resin is not stable; a premix of accelerator with hardener is stable under certain conditions. Please contact our staff for details
• Mixing time can vary from 0.5 to 3 hours, depending on mixing temperature, quantity, mixing equipment and the particular application. The required vacuum is 0.5 to 8 mbar. Degassing time is recommended at least 1 hour. The vapour pressure of the individual components should be taken into account.
• In the case of dielectrically highly stressed parts, we recommend checking the quality consistency and pre-drying of the filler. Their moisture content should be <0.2%.

* - Aradur HY 5980 is sensitive to humidity and tends to crystallise at low storage temperature. It can be re-liquefied by stirring and heating it to 40 - 80°C.

Store the components in a dry place according to the storage conditions stated on the label in tightly sealed original containers. Under these conditions, the shelf life will correspond to the expiry date stated on the label. After this date, the product may be processed only after reanalysis. Partly emptied containers should be tightly closed immediately after use. For information on waste disposal and hazardous products of decomposition in the event of a fire,
