Enhanced TDS
Identification & Functionality
- Chemical Family
- RTU Product Type
- Technologies
- Product Families
Applications & Uses
- Composites Processing Methods
- Cure Method
- Product End Uses
- Markets
- Applications
- Mixing Ratio
We recommend that the components are weighed with an accurate balance to prevent mixing inaccuracies which can affect the properties of the matrix system. The components should be mixed thoroughly to ensure homogeneity. It is important that the side and the bottom of the vessel are incorporated into the mixing process. When processing large quantities of mixture the pot life will decrease due to exothermic reaction. It is advisable to divide large mixes into several smaller containers.
- Product Processing Instructions
- Resin Transfer Moulding (RTM)
- Pressure Moulding
- Filament Winding
- Pultrusion
Properties
- Physical Form
- Notes
The values shown are for small amounts of pure resin/hardener mix. In composite structures the gel time can differ significantly from the given values depending on the fibre content and the laminate thickness.
Regulatory & Compliance
- Quality Standards
Technical Details & Test Data

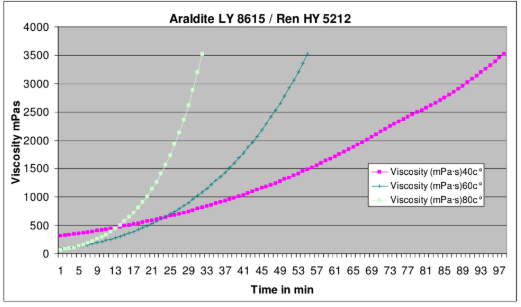

- Viscosity Build Up
- Properties of The Cured, Neat Formulation
Glass Transition Temperature (ISO 11357-2, DSC, 10 K/MIN)
Cure
Unit
Tg (°C)
90 min 80 °C + 1h 150 °C °C 178 – 182 90 min 80 °C + 1h 150 °C + 1h 180 °C °C 205 – 210 90 min 80 °C + 1h 150 °C + 1h 200 °C °C 205 – 215 Glass Transition Temperature (ISO 6721, DMA, 2 K/MIN)
Cure
Unit
Tg (°C)
24h 40 °C + 2h 120 °C + 2h 160 °C + 2h 180 °C + 2h 200 °C °C 185 – 195 Tensile Test (ISO 527)
Cure: 24h 40 °C + 2h 120 °C + 2h 160 °C + 2h 180 °C + 2h 200 °CProperty
Unit
Value
Tensile strength MPa 80 – 82 Elongation at tensile strength % 3.5 – 3.6 Ultimate strength MPa 78 – 80 Ultimate elongation % 3.5 – 3.6 Tensile modulus MPa 3100 – 3200 Flexural Test (ISO 178)
Cure: 24h 40 °C + 2h 120 °C + 2h 160 °C + 2h 180 °C + 2h 200 °CProperty
Unit
Value
Flexural strength MPa 136 – 140 Elongation at flexural strength % 5.4 – 6.0 Ultimate strength MPa 136 – 140 Ultimate elongation % 5.4 – 6.0 Flexural modulus MPa 3200 – 3300 Fracture Properties – Bend Notch Test (ISO 13586)
Cure: 24h 40 °C + 2h 120 °C + 2h 160 °C + 2h 180 °C + 2h 200 °CProperty
Unit
Value
Fracture toughness K₁C MPa√m 0.60 – 0.61 Fracture energy G₁C J/m² 128 – 132 - Properties of The Cured, Reinforced Formulation
Short beam: Laminate comprising 12 layers unidirectional E-glass fabric (425 g/m²)
Laminate thickness t = 3.1 - 3.3 mm
Fibre volume content: 63 - 65 %Interlaminar Shear Strength (ASTM D 2344)
Cure: 24h 40°C + 2h 120°C + 2h 160°C + 2h 180°C + 2h 200°CProperty Unit Value Shear strength MPa 65 – 67 Flexural Test – Parallel (ISO 178)
Cure: 24h 40°C + 2h 120°C + 2h 160°C + 2h 180°C + 2h 200°CProperty Unit Value Flexural strength MPa 1200 – 1250 Ultimate strength MPa 1150 – 1200 Ultimate elongation % 2.5 – 2.7 Flexural modulus MPa 46000 – 46500 Flexural Test – Perpendicular (ISO 178)
Cure: 24h 40°C + 2h 120°C + 2h 160°C + 2h 180°C + 2h 200°CProperty Unit Value Flexural strength MPa 142 – 148 Ultimate strength MPa 135 – 140 Ultimate elongation % 1.2 – 1.3 Flexural modulus MPa 21000 – 22000 Short beam: Laminate comprising 12 layers Carbon fabric G1157 (290 g/m2)
Laminate thickness t = 3.0 mm
Fibre volume content: 63 - 65 %Interlaminar Shear Strength (ASTM D 2344)
Cure: 24h 40°C + 2h 120°C + 2h 160°C + 2h 180°C + 2h 200°CProperty Unit Value Shear strength MPa 80 – 83 Flexural Test – Parallel (ISO 178)
Cure: 24h 40°C + 2h 120°C + 2h 160°C + 2h 180°C + 2h 200°CProperty Unit Value Flexural strength MPa 1550 - 1700 Ultimate strength MPa 1500 - 1650 Ultimate elongation % 1.1 - 1.3 Flexural modulus MPa 135000 – 137000
Flexural Test – Perpendicular (ISO 178)
Cure: 24h 40°C + 2h 120°C + 2h 160°C + 2h 180°C + 2h 200°CProperty Unit Value Flexural strength MPa 67 – 70 Ultimate strength MPa 63 – 66 Ultimate elongation % 0.6 – 0.7 Flexural modulus MPa 10000 – 11000
Safety & Health
- Handling Precautions
Personal hygiene Safety precautions at workplace protective clothing overalls gloves essential arm protectors recommended when skin contact likely goggles/safety glasses yes Skin protection before starting work Apply barrier cream to exposed skin after washing Apply barrier or nourishing cream Cleansing of contaminated skin Dab off with absorbent paper, wash with warm water
and alkali-free soap, then dry with disposable towels.
Do not use solventsDisposal of spillage Soak up with sawdust or cotton waste and deposit in
plastic-lined binVentilation of workshop Renew air 3 to 5 times an hour Ventilation of workplaces Exhaust fans. Operatives should avoid inhaling
vapoursFirst Aid : Contamination of the eyes by resin, hardener or mix should be treated immediately by flushing with clean, running water for 10 to 15 minutes. A doctor should then be consulted. Material smeared or splashed on the skin should be dabbed off, and the contaminated area then washed and treated with a cleansing cream (see above). A doctor should be consulted in the event of severe irritation or burns. Contaminated clothing should be changed immediately. Anyone taken ill after inhaling vapours should be moved out of doors immediately. In all cases of doubt call for medical assistance.
Storage & Handling
- Storage Conditions
Provided that Araldite® LY 8615 or Ren® HY 5212 are stored in a dry place in their original, properly closed containers at the storage temperatures mentioned in the MSDS they will have the shelf lives indicated on the labels. Partly emptied containers should be closed immediately after use.
