ARALDITE® PY 302-2

ARALDITE® PY 302-2 is a non-crystallizing bisphenol-A/F-based liquid epoxy resin blend. It is used in ambient-cure coating and construction applications.

Chemical Family: Epoxy & Epoxy Derivatives

End Uses: Container Coatings, Floor Coatings, Tank Lining, Top Coat

Compatible Substrates & Surfaces: Mortar

Features: Alcohol Resistance, Chemical Resistance, Crystallization Resistant, Good Mechanical Properties, High Performance, High Temperature Resistance, Low Viscosity, Medium Viscosity, Solvent Resistance

BrochureSafety Data SheetTechnical Data Sheet
  • TypeDocument Name
View All Documents

Enhanced TDS

Identification & Functionality

Blend
No
CASE Ingredients Functions
Binder & Resin
Chemical Family
Epoxy & Epoxy Derivatives
Function
Binder & Resin,Binder & Resin
Single Ingredient
Yes
Technologies
CASE
Product Families
CASE — Resins & Binders
Epoxies
Chemical Structure

Chemical Structure - 1

Features & Benefits

CASE Ingredients Features
Alcohol Resistance,
Chemical Resistance,
Crystallization Resistant,
Good Mechanical Properties,
High Performance,
High Temperature Resistance,
Low Viscosity,
Medium Viscosity,
Solvent Resistance
Labeling Claims
Solvent-free
Advantages
  • Low viscosity
  • Higher functionality than conventional bisphenol A epoxy resins
  • Highly crystallization resistant
  • Excellent resistance to solvents
  • Very good chemical resistance
  • Excellent mechanical properties

Applications & Uses

Application Method
Trowel
Coating End Applications
Container Coatings,
Floor Coatings,
Tank Lining,
Top Coat
Compatible Polymers & Resins
Polyamidoamines,
Polyamines
Compatible Substrates & Surfaces
Mortar
Markets
Adhesives & Sealants,
Paints & Coatings
Applications
Adhesives & Sealants — Building & Construction
Sealants & Caulks
Paints & Coatings — Building & Construction
Floor Coatings
Application Details
  • Solvent-free maintenance coatings
  • Industrial floorings
  • Epoxy mortars
  • Tank / pipe linings
  • Light colored or clear topcoats
  • Coatings for food and beverage processing plants
  • Coatings for potable water containers
Application Information
  • Solvent-free maintenance coatings
  • Light colored or clear topcoats
  • Coatings for food and beverage processing plants
  • Coatings for potable water containers

Properties

Physical Form
Liquid

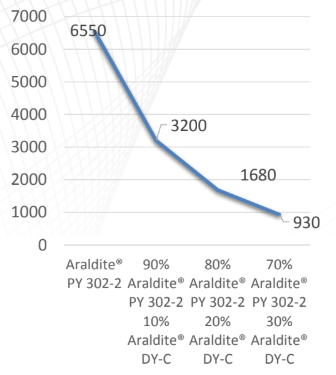

Viscosity Data

- 1

Regulatory & Compliance

Certifications & Compliance
FDA 21 CFR 175.300
Chemical Inventories
AIIC (Australia),
DSL (Canada),
ENCS (Japan),
IECSC (China),
KECI (Korea),
NZIoC (New Zealand),
PICCS (Phillipines),
TCSI (Taiwan),
TSCA (USA)
FDA Status
Araldite® PY 302-2 is included in Section 175.300 of Title 21 of the Code of Federal Regulations (21 CFR 175.300) for resinous and polymeric coatings.

Packaging & Availability

Regional Availability
  • Americas
  • Asia Pacific
  • Australia
  • EIMEA

Storage & Handling

Storage Information

ARALDITE® PY 302-2 resin is supplied in 484 pound steel drums. This product should be stored in a dry place, in the sealed original container, at temperatures between +2°C and +40°C (+35.6°F and +104°F). Under these storage conditions, the shelf life is 6 years. The product should not be exposed to direct sunlight.

Other

Appearance
Clear, no contamination
Color (SDS)
Colorless light yellow
Insoluble in (SDS)
Water
Odor (SDS)
Slight
Physical Properties
ValueUnitsTest Method / Conditions
Density1.17 g/cm³g/cm³At 25°C
Flash Pointmin. 93.0 °C°CClosed Cup
Viscosity6500.0-8000.0 mPa.smPa.sAt 25°C
