ERISYS® GS 120

ERISYS® GS 120 diluent is a diepoxide of a long-chain aliphatic dimer acid, used as a reactive additive to increase flexibility in rigid epoxy systems. It reduces viscosity, improves filler loading, and enhances toughness, impact, and thermal shock resistance, though with a slight sacrifice in elevated temperature performance and chemical resistance.



The information, specifications, and materials provided with this product are for general informational purposes only and are subject to change without notice. The product is provided “as is” without any warranties, express or implied, including but not limited to warranties of merchantability, fitness for a particular purpose, or non-infringement. Users are responsible for ensuring the product is suitable for their intended application and for following all applicable safety guidelines and instructions.

The information, specifications, and materials accessible here may not reflect the most current version. Please use the Request a Document feature for the most current product documentation available.

Chemical Family: Aliphatics

Product End Uses: Floor Coatings, Joint Sealants

Product Features: Chemical Resistance, Easy Handling, Good Elongation, Good Toughness, Thermal Shock Resistance, Viscosity Control

Enhanced TDS

Identification & Functionality

Blend
No
Chemical Family
Function
Reactive Diluent
Product Functions
Single Ingredient
Yes
Technologies
Product Families

Features & Benefits

Applications & Uses

Product End Uses
Markets
Applications
Application Information
  • Floor coatings
  • Adhesives
  • Potting compounds
  • Laminating
  • Filament winding
  • Grouts
  • Joint Sealant

Properties

Physical Form

Regulatory & Compliance

Technical Details & Test Data

Handling Properties

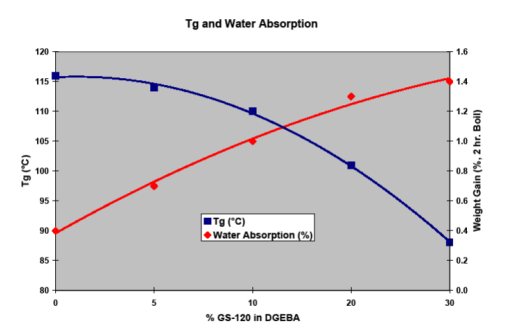

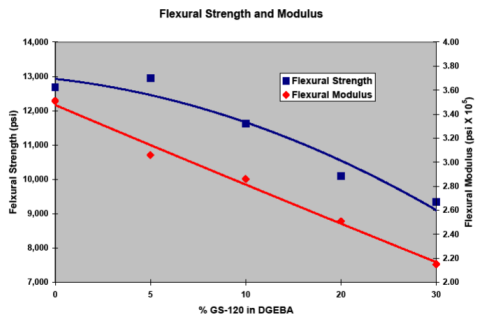

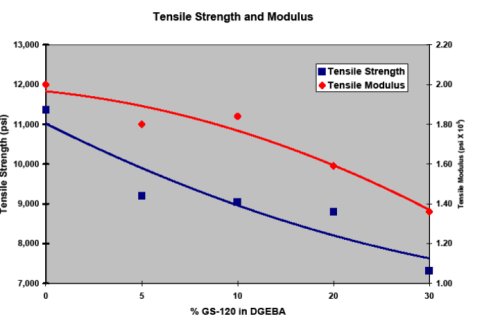

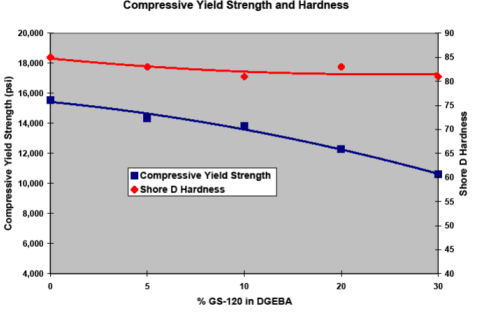

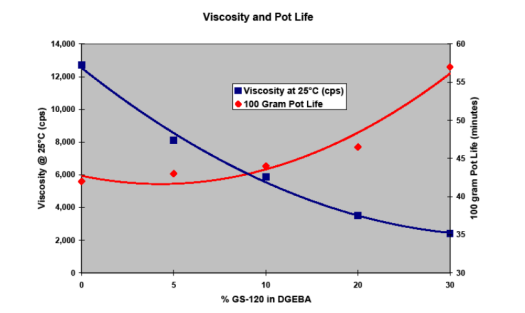

The effect of ERISYS® GS-120 diluent on the cured properties of liquid epoxy resin (EEW 188) cured with TETA.

Packaging & Availability

Regional Availability
  • Americas

Storage & Handling

Storage Information
  • ERISYS® GS-120 Diluent should be stored in a dry place, in the sealed original containers, at temperatures between +2°C and +40°C (+35.6°F and +104°F).
  • Under these storage conditions, the product has a shelf life of 24 months (from date of manufacture).
  • The products should not be exposed to direct sunlight.

Other

Appearance
Clear, Clean
Color (SDS)
Clear Colorless
Odor (SDS)
Slight
Processing & Application Methods
Physical Properties
ValueUnitsTest Method / Conditions
Viscosity400.0-900.0mPa.sat 25°C
