HYPOX® RA 840

HYPOX® RA840 is a high-viscosity adduct of the diglycidyl ether of bisphenol A (DGEBA) and a butadiene-acrylonitrile (CTBN) elastomer. The elastomer improves the toughness and impact, thermal shock and peel resistance of the epoxy formulation. These improvements are attained with little loss of thermal resistance and modulus. HYPOX® RA840 adduct is suggested for use as a toughener in fiber-reinforced products, adhesives, molding compounds, potting and encapsulating compounds and chemical-resistant coatings. HYPOX® RA840 adduct can be blended with other bis-A epoxy resins to achieve the degree of toughening required.

Functions: Binder & Resin, Molding Compound, Resins, Binders & Matrix Materials, Thermocycling Modifier, Toughener, Toughener

Chemical Family: Epoxy & Epoxy Derivatives

End Uses: Chemical-Resistant Coatings, Structural Adhesive

Processing Methods: Potting

Features: Excellent Flexibility, Fatigue Resistance, Peel Resistance, Thermal Shock Resistance

  • TypeDocument Name
View All Documents

Enhanced TDS

Identification & Functionality

Blend
No
CASE Ingredients Functions
Chemical Family
Composite Materials Functions
Function
Molding Compound,Thermocycling Modifier,Resins, Binders & Matrix Materials,Binder & Resin
Single Ingredient
Yes
Technologies
Product Families

Features & Benefits

Applications & Uses

Adhesive & Sealant End Applications
Coating End Applications
Composites Processing Methods

Properties

Physical Form

Regulatory & Compliance

Technical Details & Test Data

Test Data

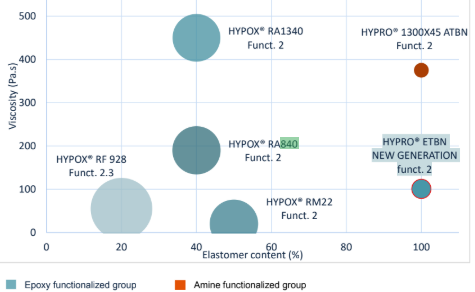

HYPRO® and HYPOX® Reactive Liquid Polymers

Size of Bubble proportional to reactive group index

 - 1

Huntsman offers a broad range of HYPRO® and HYPOX® Reactive Liquid Elastomers that differ in Butadiene and Acrylonitrile content, as well as the nature of the reactive end group.
This allows formulators to balance properties and develop specific toughening solutions.

Packaging & Availability

Regional Availability
  • Americas
  • Asia Pacific
  • Australia
  • EIMEA

Storage & Handling

Storage Information
HYPOX® RA840 adduct should be stored in a dry place, in the sealed original containers, at temperatures between +2°C and +40°C (+35.6°F and +104°F). Under these storage conditions, the product has a shelf life of 12 months (from date of manufacture). The products should not be exposed to direct sunlight.

Other

Appearance
Clear, Clean
Color (SDS)
Clear, amber
Odor (SDS)
Slight aromatic
Physical Properties
ValueUnitsTest Method / Conditions
Density8.8-9.0 lb/gallb/galAt 25°C
Flash Pointmin. 200.0 °C°CCleveland Closed Cup
Viscosity150000.0-230000.0 mPa.smPa.sat 27°C
