TACTIX® 556

TACTIX® 556 is a low moisture, hydrocarbon epoxy novolac resin. These compounds have a dicyclopentadiene backbone with a low average molecular polarity, a feature critical to low moisture absorption. Indeed, the moisture absorption of TACTIX® 556 is considerably lower than that of typical phenolic novolacs such as ARALDITE® EPN 1139 and ARALDITE® EPN 1138 resins. TACTIX® 556 resin shows exceptional ability to retain properties under conditions of moisture and elevated temperature. Additionally, its outstanding properties come with no sacrifice to processability. Similar to Bis-A epoxy resin, TACTIX® 556 resin can be used with a variety of conventional hardeners to optimize specific properties. TACTIX® 556 resin is ideal for new uses where retention of properties under hot and wet conditions is critical.

Chemical Family: Epoxy & Epoxy Derivatives

Functions: Binder & Resin

End Uses: Composite Materials

Compatible Substrates & Surfaces: Composites

Features: Good Moisture Resistance, Good Toughness, High Temperature Performance, Low Moisture Content, Low Polarity, Low Water Absorption

BrochureSafety Data SheetTechnical Data Sheet
  • TypeDocument Name
View All Documents

Enhanced TDS

Identification & Functionality

Blend
No
CAS Number
119345-05-0
CASE Ingredients Functions
Binder & Resin
Chemical Family
Epoxy & Epoxy Derivatives
Chemical Name
Dicyclopentadiene
Function
Binder
Single Ingredient
Yes
Synonyms
1,3-Dicyclopentadiene dimer, 3a,4,7,7a-Tetrahydro-4,7-methanoindene, Bicyclopentadiene, DCPD
Technologies
CASE,
Composite Materials
Product Families
CASE — Resins & Binders
Epoxies
Composite Materials — Additives
Functional Additives

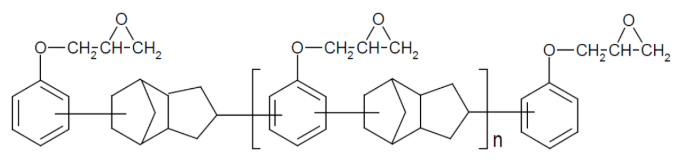

Chemical Structure

- 1

Features & Benefits

CASE Ingredients Features
Good Moisture Resistance,
Good Toughness,
High Temperature Performance,
Low Moisture Content,
Low Polarity,
Low Water Absorption
Materials Features
Low Water Absorption
Features and Benefits
  • Lower moisture absorption
  • Standard epoxy processing
  • 300°F service temperature
  • Ideal for use at elevated temperatures in a moist environment

Applications & Uses

Compatible Substrates & Surfaces
Composites
Composites End Use
Composite Materials
Markets
Automotive & Transportation
Applications
Automotive & Transportation — Transportation
Aerospace & Aviation

Properties

Physical Form
Solid

Regulatory & Compliance

Chemical Inventories
DSL (Canada),
ENCS (Japan),
IECSC (China),
KECI (Korea),
PICCS (Phillipines),
TCSI (Taiwan),
TSCA (USA)

Packaging & Availability

Regional Availability
  • Americas
  • Asia Pacific
  • Australia
  • EIMEA
Packaging Information

TACTIX® 556 is packaged in 225Kg drums and 20Kg pails.

Storage & Handling

Storage Information

The product should be stored in a dry place, in the original sealed containers, away from heat and humidity, at or around room temperature. Under these storage conditions, the product has a shelf life of 2 years (from date of manufacture). The product should not be exposed to direct sunlight.

Other

Appearance
Amber to dark colored semi-solid
Color (SDS)
Amber
Insoluble in (SDS)
Water
Physical Properties
ValueUnitsTest Method / Conditions
Density1.21 g/cm³g/cm³At 25°C
Flash Pointmin. 276.0 °C°C
Viscosity2250.0 cPscPsat 79°C
Viscosity1000.0-1500.0 mPa.smPa.sAt 85°C
