ARALDITE® DY A

ARALDITE® DY A diluent is a colorless, clear aliphatic glycidyl ether based on 2-ethylhexanol. It is primarily used as an additive to reduce the viscosity of liquid epoxy resins. The relatively long alkyl chain structure of ARALDITE® DY-A, combined with the polar epoxy group, results in efficient viscosity reduction and reduced surface tension. Epoxy resins modified with ARALDITE® DY-A diluent exhibit good wetting and leveling properties at low diluent concentrations.

Functions: Reactive Diluent, Viscosity Modifier

End Uses: Floor Coatings, Potting Compound

Compatible Polymers & Resins: Epoxies (EP)

Physical Form: Liquid

  • TypeDocument Name
View All Documents

Enhanced TDS

Identification & Functionality

CASE Ingredients Functions
Function
Viscosity Modifier,Reactive Diluent
Technologies
Product Families
Chemical Structure

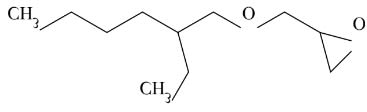

ARALDITE® DY-A - Chemical Structure - 1

Features & Benefits

Applications & Uses

Properties

Physical Form

Regulatory & Compliance

Technical Details & Test Data

Formulation Information

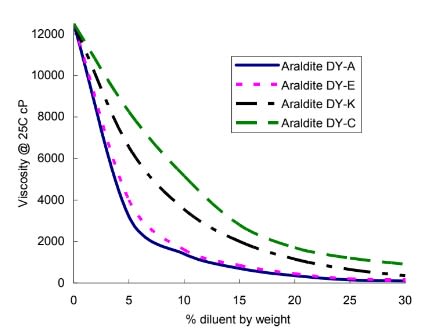

  • The graph below shows the effect of various Huntsman reactive diluents used with Araldite GY 6010 ® Epoxy.

ARALDITE® DY-A - Product Applications - 1

Packaging & Availability

Regional Availability
  • Americas
  • Asia Pacific
Packaging Information

ARALDITE® DY-A reactive is supplied in 410 pound steel drum.

Storage & Handling

Storage Condition

This product should be stored in a dry place, in the sealed original container, at temperatures between 2°C and 40°C (35.6°F and 104°F).

Shelf Life Information
  • Under 2°C and 40°C storage conditions the shelf life is 5 years. The product should not be exposed to direct sunlight.

Other

Appearance
Clear, no contamination
Color (SDS)
Clear
Odor (SDS)
Slight
Chemical Properties
ValueUnitsTest Method / Conditions
Epoxy Equivalent Weight202.0-235.0 g/eqg/eq
Physical Properties
ValueUnitsTest Method / Conditions
Density0.89 g/cm³g/cm³At 25°C
Flash Pointmin. 93.0 °C°CClosed Cup
Viscosity1.0-4.0 cPscPsAt 25°C
