ARALDITE® MY 720

ARALDITE® MY 720 is a tetrafunctional epoxy resin suitable for high-performance composite applications. Cured at 120°C (250°F) to 175°C (350°F), Araldite® MY 720 provides outstanding performance characteristics at elevated temperatures. When post-cured at 200°C (400°F), the system exhibits properties exceeding 220°C (430°F). Araldite® MY 720 systems can display Tgs.



The information, specifications, and materials provided with this product are for general informational purposes only and are subject to change without notice. The product is provided “as is” without any warranties, express or implied, including but not limited to warranties of merchantability, fitness for a particular purpose, or non-infringement. Users are responsible for ensuring the product is suitable for their intended application and for following all applicable safety guidelines and instructions.

The information, specifications, and materials accessible here may not reflect the most current version. Please use the Request a Document feature for the most current product documentation available.

Chemical Family: Epoxy & Epoxy Derivatives

Product Functions: Binder

Product End Uses: Composite Materials, Laminates, Laminating Adhesive, Structural Adhesive, Structural Components

Material Compatibility: Composite Substrate

Product Features: Chemical Resistance, Heat Resistance, High Performance, High Temperature Application, High Temperature Resistance, Increased Mechanical Strength, Low Shrinkage, Medium Viscosity, Radiation Resistance

BrochureSafety Data SheetTechnical Data Sheet
View All Documents

Enhanced TDS

Identification & Functionality

Blend
No
CAS Number
28768-32-3
Chemical Family
Epoxy & Epoxy Derivatives
Function
Resins, Binders & Matrix Materials,Resins, Binders & Matrix Materials
Product Functions
Binder
Reinforcement Material
Boron Fibers,
Carbon Fibers
Single Ingredient
Yes
Technologies
CASE,
Composite Materials
Product Families
CASE — Resins & Binders
Epoxies
Composite Materials — Additives
Functional Additives

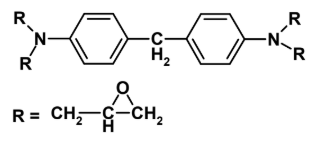

Chemical Structure

- 1

Features & Benefits

Product Features
Chemical Resistance,
Heat Resistance,
High Performance,
High Temperature Application,
High Temperature Resistance,
Increased Mechanical Strength,
Low Shrinkage,
Medium Viscosity,
Radiation Resistance
Advantages
  • Exceptionally good long-term high temperature performance
  • High mechanical strength retention
  • Extremely low shrinkage
  • Excellent chemical resistance
  • Excellent radiation stability
  • Outstanding heat resistance and deflection temperature

Applications & Uses

Product End Uses
Composite Materials,
Laminates,
Laminating Adhesive,
Structural Adhesive,
Structural Components
Markets
Adhesives & Sealants
Applications
Adhesives & Sealants — Industrial & Assembly Adhesives
Industrial Manufacturing
Application Information
  • Advanced (carbon and boron fiber) composites structures
  • High performance structural adhesives
  • Structural laminating
  • High energy radiation resistance components

Properties

Physical Form
Liquid

Regulatory & Compliance

Chemical Inventories
AIIC (Australia),
DSL (Canada),
ENCS (Japan),
IECSC (China),
KECI (Korea),
TCSI (Taiwan),
TSCA (USA)

Packaging & Availability

Regional Availability
  • Americas
  • Asia Pacific
  • Australia
  • EIMEA
Packaging Information
ARALDITE* MY 720 is packed in 145 pound drums.

Storage & Handling

Storage Information
Should be stored in a dry place, in the sealed original container, away from excessive heat and humidity, at temperatures between +2°C and +8°C (+35.6°F and 46.4°F). Under these storage conditions the shelf life is 1.5 years. The product should not be exposed to direct sunlight.

Other

Appearance
Clear, dark brown semi-solid
Color (SDS)
Brown
Material Compatibility
Composite Substrate
Odor (SDS)
Slight
Oxidizing Properties (SDS)
Not Oxidizing
Physical Properties
ValueUnitsTest Method / Conditions
Density1.15-1.18g/cm³at 25°C
Flash Pointmin. 149.0°CClosed Cup
Viscosity7000.0-19000.0mPa.sat 50°C
