E-GRADE® 1,3-dimethyl-2-imidazolidinone (E-GRADE® DMEU)

E-GRADE® 1,3-dimethyl-2-imidazolidinone (E-GRADE® DMEU) is primarily used in stripping, cleaning, and wet etching formulations in the semiconductor, display, and PCB industries.



The information, specifications, and materials provided with this product are for general informational purposes only and are subject to change without notice. The product is provided “as is” without any warranties, express or implied, including but not limited to warranties of merchantability, fitness for a particular purpose, or non-infringement. Users are responsible for ensuring the product is suitable for their intended application and for following all applicable safety guidelines and instructions.

The information, specifications, and materials accessible here may not reflect the most current version. Please use the Request a Document feature for the most current product documentation available.

Product Functions: Solvent

Chemical Family: Amines

Product End Uses: Printed Circuit Board (PCB), Semiconductor Etching, Semiconductors

Product Features: Easy Handling, Excellent Chemical Stability, Good Solubility, Good Solvency, Good Thermal Stability, High Purity, Low Trace Metals, Low Vapor Pressure, Water Soluble, Wide Operating Temperature Range

Brochure
View All Documents

Enhanced TDS

Identification & Functionality

Blend
No
Chemical Family
Amines
Chemical Name
1,3-dimethylimidazolidin-2-one
Function
Solvent,Reactive Diluent,Binder & Resin
Product Functions
Solvent
Single Ingredient
Yes
Technologies
Industrial Additives & Materials
Product Families
Industrial Additives & Materials — Battery & Electronic Materials
Electronic Chemicals
Chemical Structure

E-GRADE® 1,3-dimethyl-2-imidazolidinone (E-GRADE® DMEU) - Chemical Structure - 1

Features & Benefits

Product Features
Easy Handling,
Excellent Chemical Stability,
Good Solubility,
Good Solvency,
Good Thermal Stability,
High Purity,
Low Trace Metals,
Low Vapor Pressure,
Water Soluble,
Wide Operating Temperature Range
Benefits
  • Low trace metals
  • Low vapor pressure
  • Wide working temperature range
  • Compatible with Al, Cu, and other metals

Applications & Uses

Markets
Electrical & Electronics
Applications
Electrical & Electronics — Parts & Components
Printed Circuit Boards (PCBs),
Batteries,
Semiconductor Manufacturing
Application Information
  • Semiconductor stripping and cleaning
  • Displays stripping and cleaning
  • PCB stripping and cleaning

Technical Details & Test Data

Performance Data

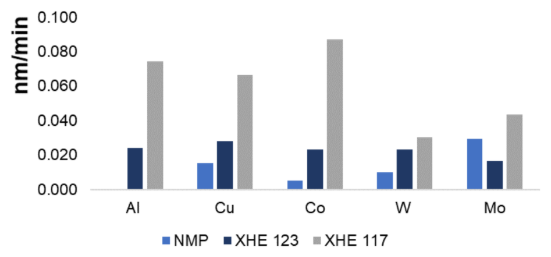

Realitive Corrosion Rates 10% Aqueous Solutions

- 1

E-GRADE® DMEU is compatible with metals like Copper and Aluminum, making it appropriate for use in applications that require solvents to have anti-corrosion properties.

E-GRADE® DMEU is a suitable replacement for NMP as a processing solvent for PVDF in electrode material and lithium-ion battery manufacturing. E-GRADE® DMEU provides ease of handling without sacrificing performance.

- 1

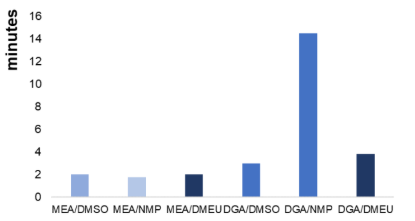

AZ1500 was heated at 100°C for 60 seconds and 120°C for 240 seconds to stimulate photoresist heat treatment. E-GRADE® DMEU demonstrates desirable removal speeds when used with DGA and MEA in photoresist removal solutions.

Packaging & Availability

Regional Availability
  • Global

Other

Material Compatibility
Aluminum Substrate,
Copper Substrate,
Metal Substrate
Product End Uses
Printed Circuit Board (PCB),
Semiconductor Etching,
Semiconductors
Physical Properties
ValueUnitsTest Method / Conditions
Boiling Point225.0°C
Density1.05g/mL
Flash Point95.0°CPensky-Martens Closed Cup (PMCC)
