ARALDITE® AV 4415 / HARDENER HV 4416-1

• Temperature resistant up to 180C
• Excellent resistance to most common chemicals
• Non flowing paste for ease of application
• Gap filling
• Bonds a wide range of substrate materials
• Post cure recommended for optimum properties

• Temperature resistant up to 180°C
• Excellent resistance to most common chemicals
• Non flowing paste for ease of application
• Gap filling
• Bonds a wide range of substrate materials
• Post cure recommended for optimum properties

Pretreatment

The strength and durability of a bonded joint are dependent on proper treatment of the surfaces to be bonded. At the very least, joint surfaces should be cleaned with a good degreasing agent such as acetone or other proprietary degreasing agents in order to remove all traces of oil, grease and dirt. Low-grade alcohol, gasoline (petrol) or paint thinners should never be used. The strongest and most durable joints are obtained by either mechanically abrading or chemically etching (“pickling”) the degreased surfaces. Abrading should be followed by a second degreasing treatment

Application of adhesive

The resin/hardener mix is applied directly or with a spatula, to the pretreated and dry joint surfaces. A layer of adhesive 0.05 to 0.10mm thick will normally impart the greatest lap shear strength to the joint. The joint components should be assembled and clamped as soon as the adhesive has been applied. An even contact pressure throughout the joint area will ensure optimum cure.

Mechanical processing

Specialist firms have developed metering, mixing and spreading equipment that enables the bulk processing of adhesive. We will be pleased to advise customers on the choice of equipment for their particular needs.

Equipment maintenance

All tools should be cleaned with hot water and soap before adhesives residues have had time to cure. The removal of cured residues is a difficult and time-consuming operation. If solvents such as acetone are used for cleaning, operatives should take the appropriate precautions and, in addition, avoid skin and eye contact

To achieve optimum performance properties an elevated temperature cure or post cure is recommended. Lap shear strength of 1 MPa represents a strength where careful handling of the bonded object is possible. This adhesive will not fully cure at temperatures below 60°C.

Suggested cure schedules are: 8 hrs. at 80°C or 1 hr. at 130°C or 30 min. at 150°C

• Pretreatment: The strength and durability of a bonded joint are dependent on proper treatment of the surfaces to be bonded. At the very least, joint surfaces should be cleaned with a good degreasing agent such as acetone or other proprie- tary degreasing agents in order to remove all traces of oil, grease and dirt. Low-grade alcohol, gasoline (petrol) or paint thinners should never be used. The strongest and most durable joints are obtained by either mechanically abrading or chemically etching (“pick- ling”) the degreased surfaces. Abrading should be followed by a second degreasing treatment
• Application of adhesive: The resin/hardener mix is applied directly or with a spatula, to the pretreated and dry joint surfaces. A layer of adhesive 0.05 to 0.10mm thick will normally impart the greatest lap shear strength to the joint. The joint components should be assembled and clamped as soon as the adhesive has been applied. An even con- tact pressure throughout the joint area will ensure optimum cure
• Mechanical processing: Specialist firms have developed metering, mixing and spreading equipment that enables the bulk processing of ad- hesive. We will be pleased to advise customers on the choice of equipment for their particular needs.
• Equipment maintenance: All tools should be cleaned with hot water and soap before adhesives residues have had time to cure. The removal of cured residues is a difficult and time-consuming operation. If solvents such as acetone are used for cleaning, operatives should take the appropriate precautions and, in addi- tion, avoid skin and eye contact.

Unless otherwise stated, the figures given below were all determined by testing standard specimens made by lapjointing 114 x 25 x 1.6 mm strips of aluminium alloy. The joint area was 12.5 x 25 mm in each case. The figures were determined with typical production batches using standard testing methods. They are provided solely as technical information and do not constitute a product specification.

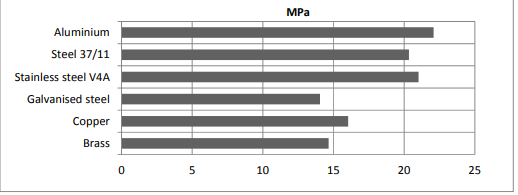

Average lap shear strengths of typical metal-to-metal joints (ISO 4587) (typical average values):  Cured for 24 hours at 23°C + 1 hour at 130°C and tested at 23°C Pretreatment - Sand blasting

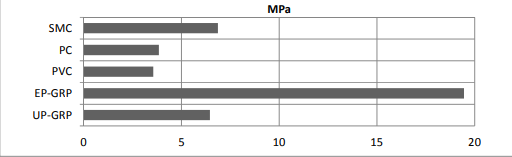

Average lap shear strengths of typical plastic-to-plastic joints (ISO 4587) (typical average values) Cured for 24 hours at 23°C + 1 hour at 130°C and tested at 23°C Pretreatment - Lightly abrade and alcohol degrease.

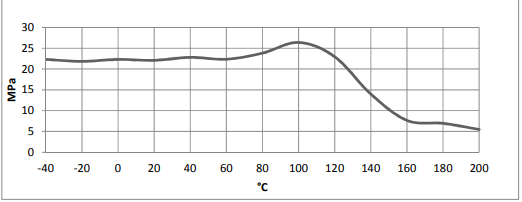

Lap shear strength versus temperature (ISO 4587) (typical average values) Cure: 24 hours at 23°C + 1 hour at 130°C

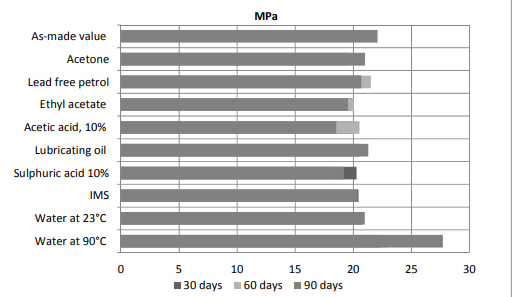

Lap shear strength versus immersion in various media (typical average values) Unless otherwise stated, L.S.S. was determined after immersion for 90 days at 23°C Cure: 24 hours at 23°C + 1 hour at 130°C

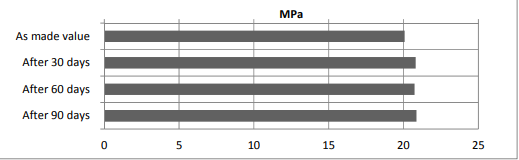

Lap shear strength versus tropical weathering (typical average values)

40°C / 92% Relative Humidity Cure: 24 hours at 23°C + 1 hour at 130°C and test at 23°C

DMA (typical average values)

Cure: 24 hours at 23°C + 1 hour at 130°C

• Our products are generally quite harmless to handle provided that certain precautions normally taken when handling chemicals are observed.
• The uncured materials must not, for instance, be allowed to come into contact with foodstuffs or food utensils, and measures should be taken to prevent the uncured materials from coming in contact with the skin, since people with particularly sensitive skin may be affected.
• The wearing of impervious rubber or plastic gloves will normally be necessary; likewise the use of eye protection.
• The skin should be thoroughly cleansed at the end of each working period by washing with soap and warm water.
• The use of solvents is to be avoided. Disposable paper - not cloth towels - should be used to dry the skin. Adequate ventilation of the working area is recommended.

Araldite® AV 4415 with HV 4416-1 hardener may be stored at room temperature, provided storage is in original sealed containers
