ARALDITE® 2014 A/B

• Grey paste
• High temperature and chemical resistance
• Low shrinkage
• Very resistant to water and a variety of chemicals
• Gap filling, non sagging up to 0.197 in (5 mm) thickness

• Grey paste
• High temperature and chemical resistance
• Low shrinkage
• Very resistant to water and a variety of chemicals
• Gap filling, non sagging up to 0.197 in (5 mm) thickness

Pretreatment

• The strength and durability of a bonded joint are dependant on proper treatment of the surfaces to be bonded.
• At the very least, joint surfaces should be cleaned with a good degreasing agent such as acetone or other proprietary degreasing agents in order to remove all traces of oil, grease and dirt. Low grade alcohol, gasoline, or paint thinners should never be used.
• The strongest and most durable joints are obtained by either mechanically abrading or chemically etching (“pickling”) the degreased surfaces. Abrading should be followed by a second degreasing treatment.

• The resin/hardener mix may be applied manually or robotically to the pretreated and dry joint surfaces.
• Huntsman's technical support group can assist the user in the selection of a suitable application method as well as suggest a variety of reputable companies that manufacture and service adhesive dispensing equipment.
• A layer of adhesive 0.002 to 0.004 in (0.05 to 0.10 mm) thick will normally impart the greatest lap shear strength to the joint.
• Huntsman stresses that proper adhesive joint design is also critical for a durable bond.
• The joint components should be assembled and secured in a fixed position as soon as the adhesive has been applied.

• All tools should be cleaned with hot water and soap before adhesives residues have had time to cure.
• The removal of cured residues is a difficult and time-consuming operation.
• If solvents such as acetone are used for cleaning, operatives should take the appropriate precautions and, in addition, avoid skin and eye contact.

Pretreatment

The strength and durability of a bonded joint are dependant on proper treatment of the surfaces to be bonded. At the very least, joint surfaces should be cleaned with a good degreasing agent such as acetone or other proprietary degreasing agents in order to remove all traces of oil, grease and dirt. Low grade alcohol, gasoline, or paint thinners should never be used. The strongest and most durable joints are obtained by either mechanically abrading or chemically etching (“pickling”) the degreased surfaces. Abrading should be followed by a second degreasing treatment.

ARALDITE® 2014 A/B structural adhesive is available in cartridges incorporating mixers and can be applied as ready to use adhesive with the aid of the tool recommended by Huntsman Advanced Materials.

Application of adhesive

The resin/hardener mix may be applied manually or robotically to the pretreated and dry joint surfaces. Huntsman's technical support group can assist the user in the selection of a suitable application method as well as suggest a variety of reputable companies that manufacture and service adhesive dispensing equipment. A layer of adhesive 0.002 to 0.004 in (0.05 to 0.10 mm) thick will normally impart the greatest lap shear strength to the joint. Huntsman stresses that proper adhesive joint design is also critical for a durable bond. The joint components should be assembled and secured in a fixed position as soon as the adhesive has been applied.

Equipment maintenance

All tools should be cleaned with hot water and soap before adhesives residues have had time to cure. The removal of cured residues is a difficult and time-consuming operation. If solvents such as acetone are used for cleaning, operatives should take the appropriate precautions and, in addition, avoid skin and eye contact.

Typical cured properties

Unless otherwise stated, the figures given below were all determined by testing standard specimens made by lapjointing 4.5 x 1 x 0.063 in (114 x 25 x 1.6 mm) strips of aluminum alloy. The joint area was 0.5 x 1 in (12.5 x 25 mm) in each case. The figures were determined with typical production batches using standard testing methods. They are provided solely as technical information and do not constitute a product specification.

Average lap shear strengths of typical metal-to-metal joints (ISO 4587)

Cured for 16 hours at 104°F(40°C) and tested at 73°F (23°C); Pretreatment - Sand blasting

Average lap shear strengths of typical plastic-to-plastic joints (ISO 4587)

Cured for 16 hours at 104°C and tested at 23°C. Pretreatment - Lightly abrade and alcohol degrease.

Lap shear strength versus temperature (ISO 4587)

(typical average values) Cure: (a) = 7 days / 23°C; (b) = 24 hours / 23°C and 30 minutes / 180°C

Roller peel test (ISO 4578)

Cured: 16 hours / 104o F (40°C) 17 pli (3.0 N/m)

Glass transition temperature (DSC)

Cure: 24 hours at 23°C plus 1 hour at 80°C: ca. 85°C

Shear modulus (DIN 53445)

Cure: 16 hours / 40°C

50°C - 1.2 GPa

75°C - 400 Mpa

100°C - 180 Mpa

125°C - 20 Mpa

E - modulus (ISO R527) at 23°C: 4 Gpa

Flexural Properties (ISO 178) Cure 16 hours/ 40ºC Cure 1 day / 23°C and 30mins / 80°C tested at 23°C

Flexural Strength: 61 Mpa

Flexural Modulus: 4355 MPa

Tensile strength (ISO R527) at 23°C:  26 Mpa

Elongation at break: 0.7%

Lap shear strength versus immersion in various media (typical average values)

Unless otherwise stated, L.S.S. was determined after immersion for 90 days at 23°C

Cure: 16 hour / 40°C

Lap shear strength versus tropical weathering
(40/92, DIN 50015; typical average values)

Cure: 16 hours / 40°C Test: at 23°C

Lap shear strength versus heat aging Cure: 16 hours / 104°F (40°C)

• Unless otherwise stated, the figures given below were all determined by testing standard specimens made by lap-jointing 4.5 x 1 x 0.063 in (114 x 25 x 1.6 mm) strips of aluminum alloy.
• The joint area was 0.5 x 1 in (12.5 x 25 mm) in each case.
• The figures were determined with typical production batches using standard testing methods.
• They are provided solely as technical information and do not constitute a product specification.

Average lap shear strengths of typical metal-to-metal joints (ISO 4587)

Cured for 16 hours at 104°F(40°C) and tested at 73°F (23°C); Pretreatment - Sand blasting

Average lap shear strengths of typical plastic-to-plastic joints (ISO 4587)
Cured for 16 hours at 104°F (40°C) and tested at 73°F (23°C). Pretreatment - Lightly abrade and alcohol degrease.

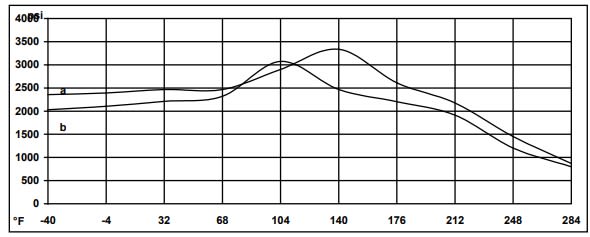

Lap shear strength versus temperature (ISO 4587) (typical average values)

Cure: (a) = 7 days / 73°F (23°C); (b) = 24 hours / 73°F (23°C) + 30 minutes / 176°F (80°C)

Roller peel test (ISO 4578)

Cured: 16 hours / 104°F (40°C) - 17 pli (3.0 N/m)

Glass transition temperature (DSC)
Cure: 24 hours at 73°F (23°C) plus 1 hour at 176°F (80°C): - ca. 185°F (85°C)

Shear modulus (DIN 53445) Cure: 16 hours / 104°F (40°C)

122°F (50°C) - 174,045 psi (1.2 GPa)
167°F (75°C) - 58,015 psi (400 Mpa)
212°F (100°C) - 26,107 psi (180 Mpa)

257°F (125°C) - 2,901 psi (20 Mpa)

E - modulus (ISO R527) at 73°F (23°C) - 580,151 psi (4 Gpa)

Flexural Properties (ISO 178) Cure 16 hours/ 104°F (40ºC) Cure 1 day / 73°F (23°C) + 30mins / 176°F (80°C) tested at 73°F (23°C)
Flexural Strength - 8,847 psi (61 Mpa)

Flexural Modulus - 631,475 psi (4355 MPa)

Tensile strength (ISO R527) at 73°F (23°C) 3,773 psi (26 Mpa)

Elongation at break - 0.7%

Lap shear strength versus immersion in various media (typical average values)
Unless otherwise stated, L.S.S. was determined after immersion for 90 days at 73°F (23°C)
Cure: 16 hour / 104°F (40°C)

Lap shear strength versus tropical weathering

(40/92, DIN 50015; typical average values)
Cure: 16 hours / 104°F (40°C) Test: at 73°F (23°C)

Lap shear strength versus heat aging
Cure: 16 hours / 104°F (40°C)

Caution : To protect against any potential health risks presented by our products, the use of proper personal protective equipment (PPE) is recommended. Eye and skin protection is normally advised. Respiratory protection may be needed if mechanical ventilation is not available or is insufficient to remove vapors

Araldite 2014 structural adhesive is available in cartridges incorporating mixers and can be applied as ready to use adhesive with the aid of the tool recommended by Huntsman Advanced Materials.

ARALDITE® 2014 A/B may be stored for up to three years at room temperature provided the components are stored in sealed containers. The expiry date is indicated on the label.

• ARALDITE® 2014 A/B may be stored for up to three years at room temperature provided the components are stored in sealed containers.
• The expiry date is indicated on the label.

• To protect against any potential health risks presented by our products, the use of proper personal protective equipment (PPE) is recommended.
• Eye and skin protection is normally advised.
• Respiratory protection may be needed if mechanical ventilation is not available or is insufficient to remove vapors.
